| 类型：模拟示波器 | 品牌：美创 | 型号：V-5060D |
| 通道数：2 | 带宽：详见资料MHz | 采样率：详见资料GS/s |
| 记录长度：详见资料k | 波形捕获率：详见资料wfms/s | 外形尺寸：详见资料mm |
| 重量：详见资料kg | 加工定制：否 | 规格：详见资料 |

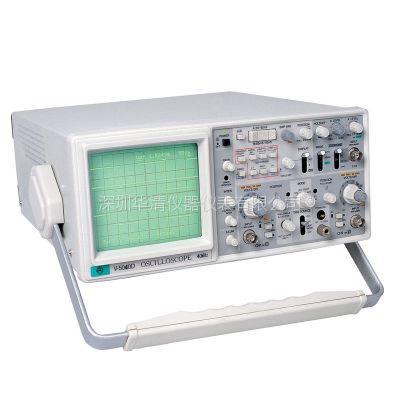

模拟示波器V-5040D
Specifications | V-5040D | V-5060D |
CRT | 6 inch rectangular screen with internal graticule, 8X10div.(1div = 1cm) ( 6英寸带内部格画线的屏幕8X10格,1格=1cm) | |
Vertical deflection system (垂直偏向) | ||
Sensitivity (灵敏度) | CH1 or CH2:5mV/div to 5V/div ±3% (11 ranges). (CH1或 CH2:5mV/格到5V/格±3% ,分11档) | |
CH3: 0.1V/div (CH3: 0.1V/格) | ||
Frequency (频率) | DC-40MHz | DC-60MHz |
Rise time (上升时间) | 8.8ns | 5.9ns |
Max. Input voltage (输入电压) | 400V (DC+AC peak) ≤1KHz | |
Input coupling (输入耦合) | CH1, CH2: AC, DC, GND | |
CH3: AC, DC | ||
Display mode (显示模式) | CH1, CH2, CH3, ADD, ALT, CHOP (CH1, CH2, CH3,相加、交替、断续) | |
Polarity selection (极性选择) | ±(CH2 only) (仅CH2) | |
X-Y operation (X-Y操作) | ||
X-Y operation (X-Y操作) | X axie and Y axie selection (X轴、Y轴选择) | |
X-Y Phase difference (X-Y相位差) | ≤3°, DC-50KHz | |
Bandwidth of X axie (X轴带宽) | DC-500KHz (-3dB) | |
Horizontal deflection system (水平偏向) | ||
Sweep time (扫描时间) | A Sweep: 50ns/div to 5s/div (A扫描: 50ns/格到5s/格) | |
B Delayed Sweep: 50ns/div to 50s/div (B扫描: 50ns/格到50s/格) | ||
Sweep magnification (扫描展宽) | x10 ( x10倍) | |
HOLD OFF time (释抑时间) | Adjustable (可调) | |
Delay Time (延迟时间) | 1ms to 5s (1ms到5s) | |
Trigger System (触发系统) | ||
Trigger mode (触发模式) | NORM , AUTO, TV-V, TV-H (常态，自动，电视场，电视行) | |
Trigger source (触发源) | CH1, CH2, VERT, EXT | |
Trigger level (触发电平) | Adjustable (可调范围) | |
AUTO | Automatically synchronized to trigger signal (自动同步到触发信号) | |
NORM | ±4 div (±4格) | |
CRT Readout（数字读出） | ||
Readout time (读出时间) | Vertical axie(垂直轴): V/DIV, UNCAL, probe factor (表笔因子) | |
Sweep speed(扫速): S/DIV, UNCAL, MAG | ||
Cursor readout function (读出功能) | ΔV, ΔT, 1/ΔT | |
Others (其它) | ||
Calibration waveform (校正波形) | Frequency (频率): 1KHz 20%, Voltage(电压): 0.5V 1% | |
Power supply (电源) | 220V/110V ±10%; 50/60Hz | |
Dimensions (尺寸) | 310(W) x 130(H) x 370(D)mm | |
Weight (重量) | 9.5kg | |
