| 加工定制：是 | 品牌：Gwinstek/固纬 | 型号：APS-1102A |
| 类型：开关式直流稳压器 | 输出电流：APS-1102A A | 输入电压：APS-1102A V |
| 输出电压：APS-1102A V | 输出功率：详见资料W | 频率范围：详见资料 |
| 工作温度：5kg | 产品认证：详见资料 |
| MODEL | APS-1102A(AC + DC) | ||
| Maximum Output Capacity | |||
| AC (Input) | 750VA (100 ~ 180V) | ||
| 1000VA (180 ~ 250V) | |||
| DC (Input) | 750W (100 ~ 180V) | ||
| 1000W (180 ~ 250V) | |||
| Output Voltage | |||
| AC | 0.0V ~ 155.0Vrms (100V) | ||
| 0.0V ~ 310.0Vrms (200V) | |||
| DC | "-220.0V ~ +220.0V (100V) | ||
| "-440.0V ~ +440.0V (200V) | |||
| Output Max. Current | |||
| AC | 10A (100V) | ||
| (200V) | |||
| DC | 10A (100V) | ||
| (200V) | |||
| Output Maximum Peak Current | |||
| Output Maximum Peak Current | 40Apk (100V) | ||
| 20Apk (200V) | |||
| Frequency | |||
| Setting Range | 1.0Hz ~ 550.0Hz | ||
| Setting Accuracy | ±100ppm(23±5℃) | ||
| Waveform | |||
| Output Voltage Distortion | 0.5% MAX(50Hz / 60Hz) | ||
| Line Voltage Regulation | |||
| 0.2% Maximum,Power input voltage 100V /120V/230V , no load, rated output | |||
| Load Voltage Regulation | |||
| 0.5% Maximum,At output terminal under no load and rated resistance load | |||
| Measurement | |||
| Range(AC+DC) | Resolution | Accuracy(AC+DC), At DC 40~550Hz | |
| Frequency Counter | 1.0Hz ~ 550.0Hz | 0.1 Hz | ±100ppm(1Hz ~ 500Hz, 23±5°C) |
| RMS Voltage-Meter | Full Scale 100V : 250.0Vrms | 0.1Vrms | ±0.7% of rdg+0.9Vrms (at 23±5°C) |
| Full Scale 200V : 500.0Vrms | 0.1Vrms | ±0.7% of rdg+1.8Vrms (at 23±5°C) | |
| RMS Amp-Meter | Full Scale 15.00Arms | 0.01Arms | ±0.7% of rdg+0.08Arms (at 23±5°C) |
| Wattage Meter | Full Scale 1200W | 1W | ±3% of rdg+12W (at 23±5°C) |
| Load Power Factor | 0.00 ~ 1.0 | 0.01 | N/A |
| Load Crest Factor | 0.00 ~ 50.00 | 0.01 | N/A |
| Frequency Measurement | 38.0 ~ 525.0Hz | 0.1Hz | ±0.2Hz(at 23±5°C) |
| phase When Output Is On | 0.0 ~ 359.9 | 0.1 | N/A |
| External Signal Input | |||
| Gain Setting Range | 100V range 0 ~ 220 times | 0.1 | ±5%(DC or 45Hz to 65Hz) |
| 200V range 0 ~ 440 times | 0.1 | ±5%(DC or 45Hz to 65Hz) | |
| Output Mode | ACINT Mode : AC+DC-INT Mode AC - ADD Mode AC+DC - ADD Mode AC-EXT Mode : AC+DC-EXT Mode AC - SYNC Mode AC+DC - SYNC Mode | ||
| General Specification | |||
| Memory | Save / Recall 30 sets | ||
| Power Source | AC100V ~ 230V ± 10% ; 50Hz / 60Hz±2Hz | ||
| Power Consumption / Factor | 1.4kVA max / 0.95min (AC100V) ; 0.9min(AC200V) | ||
| Interface | USB & RS232 Standard | ||
| Dimension(WxHxD) & weight | 258 x 176 x 440; Approx. 9.7kg | ||

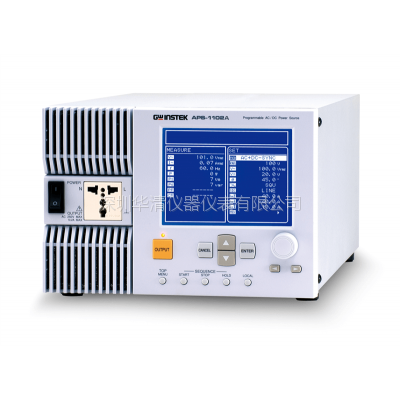

APS-1102A ；APS-1102A(AC + DC)交流+直流電源供應器
