| 加工定制：是 | 品牌：Gwinstek/固纬 | 型号：APS-7050 |
| 类型：开关式直流稳压器 | 输出电流：APS-7050 A | 输入电压：APS-7050 V |
| 输出电压：详见资料V | 输出功率：APS-7050 W | 频率范围：APS-7050 |
| 工作温度：APS-7050 | 产品认证：APS-7050 |

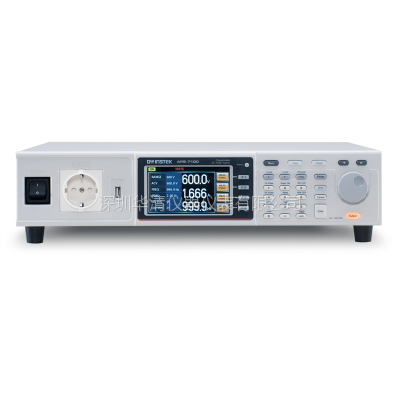

固緯電子全新推出APS-7000系列交流電源供應器，在2U高度下，額定輸出在APS-7050為500VA、310Vrms、 4.2Arms；APS-7100為1000VA、310Vrms、8.4Arms，輸出頻率為45~500Hz。輸出電壓0~600Vrms 及輸出頻率45~999.9Hz可透過選配方式直接擴充。適用於直流電源裝置、消費性電子產品、車用電子及電子元件的測試及開發。
APS-7000系列在量測功能上共有9項(Vrms、Irms、F、Ipk、W、VA、PF、Ipk hold、CF)量測項目，並提供近似AC Power Meter操作介面，透過多組電流檔位切換提升小電流量測解析度，適用LED產業或待機功耗量測。在ARB Mode下，APS-7000 系列提供SINE waveform、Triangle waveform、Staircase waveform、Clipped Sinewave、Crest factor waveform、Surge waveform及Fourier series等波形，能滿足各產業在模擬輸入電源異常波形的測試。10組Preset設定，可供使用者儲存十組設定值；Power ON Output設定允許Sequence、Simulate及Program在開機後自動執行輸出；SCPI Emulation兼容華儀6700系列之控制命令。
為了滿足消費性電子產品常見的輸入電源變動的測試條件，APS-7000系列提供五種方式因應特殊或異常的電壓、頻率、相位變化，10組Simulate模擬電源中斷、電壓增加或電壓減少行為；10組Sequence供使用者自訂參數，透過steps編輯產生正弦波；10組Program用於編輯交流波形輸出，同時可針對不同DUT自定量測項目之上/下限；Ramp Control允許使用者設定輸出電壓上升及下降的變化速度；Surge/Dip Control可模擬DUT之輸入電源在特定時間下產生一個Surge或Dip電壓疊加在輸出電壓波形。
Model | APS-7050 | APS-7100 | |||
Maximum Output Capacity | |||||
Power Rating | 500VA | 1kVA | |||
Output Voltage Setting | |||||
Range | 0~155Vrms, 0~310Vrms, 0~600Vrms (APS-003), Auto | ||||
Output Maximum Current | |||||
Range | 4.2A/2.1A/1.0 (APS-003) | 8.4A/4.2A/2.1A (APS-003) | |||
OutputMaximumPeak Current | |||||
Range | 16.8A/8.4A/4.2A (APS-003) | 33.6A/16.8A/8.4A (APS-003) | |||
Output Frequency Setting | |||||
Range | 45.0~500Hz | 45~999.9Hz(APS-004) | 45.0~500Hz | 45~999.9Hz(APS-004) | |
Resolution | 0.01Hz(45.0~99.99Hz) | 0.01Hz(45.0~99.99Hz) | 0.01Hz(45.0~99.99Hz) | 0.01Hz(45.0~99.99Hz) | |
Setting Accuracy | ±(0.02% of setting) | ||||
Waveform | |||||
Total harmonic distortion | ≦0.5% at 45~500Hz (Resistive load) | ||||
Voltage Regulation | |||||
Line Regulation | 0.1% of full scale | ||||
Load Regulation | 0.5% of full scale | ||||
Measurement | |||||
Frequency | Range | 45~ 500Hz | |||
Resolution | 0.01Hz (45.0~99.99Hz) | ||||
Accuracy | ±0.1Hz | ||||
With APS-004 Option | Range | 45~ 999.9Hz | |||
Resolution | 0.01Hz (45.0~99.99Hz) | ||||
Accuracy | ±0.02% of setting | ||||
Voltage (r.m.s) | Range | 0.2~38.75 Vrms | |||
Resolution | 0.01V at 0.00~99.99 Vrms | ||||
Accuracy | ±(0.5% of reading+ 2counts) | ||||
With APS-003 Option | Range | 0.2~600Vrms | |||
Resolution | 0.01V at 0.00~99.99 Vrms | ||||
Accuracy | ±(0.5% of setting+ 2counts) | ||||
Current (r.m.s) | Range | 2.00~70.00mA | |||
Resolution | 0.01mA | ||||
Accuracy | ±(0.6% of reading+5 counts), 2.00~350.0mA | ||||
Power (W) | Resolution | 0.01W | |||
Accuracy | ±(0.6% of reading+5 counts), 0.2~99.99W | ||||
Power Factor | Resolution | 0.001 | |||
Accuracy | ±(2% reading+ 2 counts) | ||||
Crest Factor | Range | 0.00~50.00 | |||
Resolution | 0.01 | ||||
General | |||||
Remote Output Signal | Pass, Fail, Test-in Process, Trigger in, Trigger out ,Out ON/OFF | ||||
Sync Signal Socket | Output Signal 10V, BNC type | ||||
Interface | USB Host, LAN | ||||
Output Mode | |||||
Memory | 10 (0~9 numeric keys) | ||||
AC Input | 115/230 Vac±15% | ||||
